DCN V2

Introduction

[paper]

Title: DCN V2: Improved Deep & Cross Network and Practical Lessons forWeb-scale Learning to Rank Systems

Authors: Ruoxi Wang, Rakesh Shivanna, Derek Z. Cheng, Sagar Jain, Dong Lin, Lichan Hong, Ed H. Chi

Abstract: Learning effective feature crosses is the key behind building recommender systems. However, the sparse and large feature space requires exhaustive search to identify effective crosses. Deep & Cross Network (DCN) was proposed to automatically and efficiently learn bounded-degree predictive feature interactions. Unfortunately, in models that serve web-scale traffic with billions of training examples, DCN showed limited expressiveness in its cross network at learning more predictive feature interactions. Despite significant research progress made, many deep learning models in production still rely on traditional feed-forward neural networks to learn feature crosses inefficiently. In light of the pros/cons of DCN and existing feature interaction learning approaches, we propose an improved framework DCN-V2 to make DCN more practical in large-scale industrial settings. In a comprehensive experimental study with extensive hyper-parameter search and model tuning, we observed that DCN-V2 approaches outperform all the state-of-the-art algorithms on popular benchmark datasets. The improved DCN-V2 is more expressive yet remains cost efficient at feature interaction learning, especially when coupled with a mixture of low-rank architecture. DCN-V2 is simple, can be easily adopted as building blocks, and has delivered significant offline accuracy and online business metrics gains across many web-scale learning to rank systems at Google.

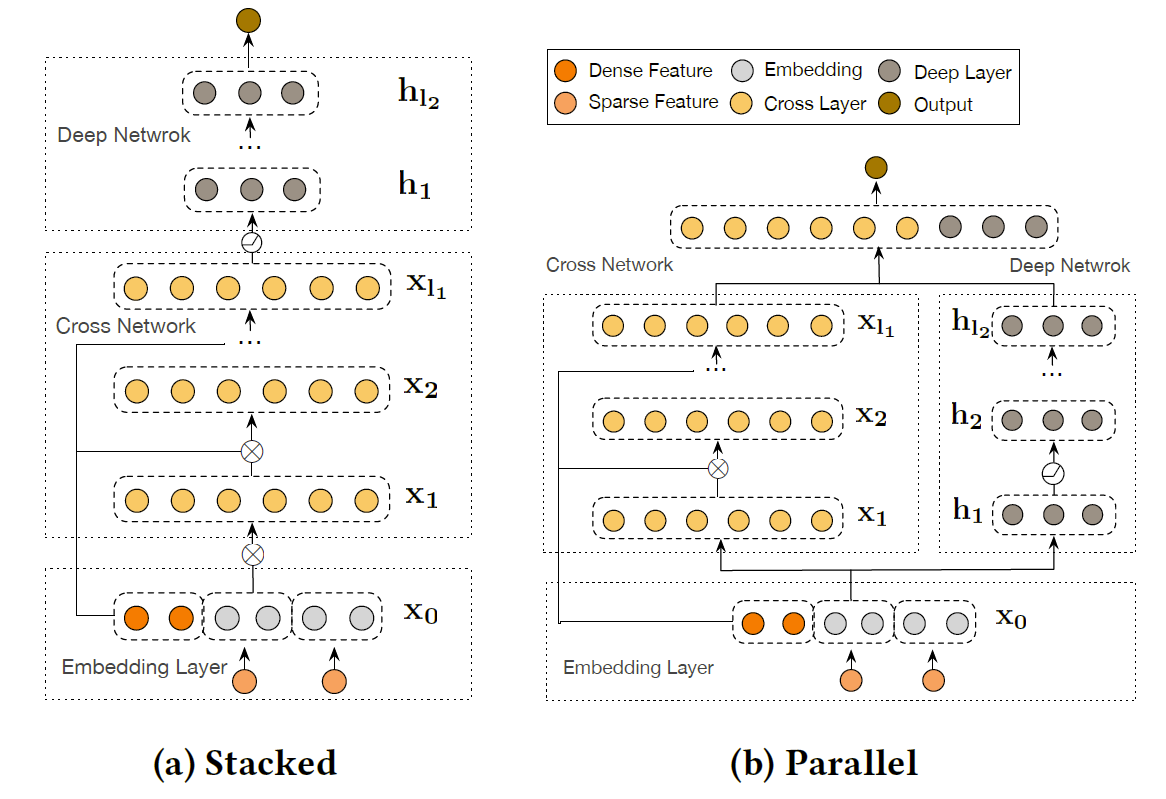

../../../_images/dcnv2.png

Quick Start with RecBole

Model Hyper-Parameters:

  • mixed (bool) : The structure of cross network. Defaults to False.

  • structure (string) : The combination method between cross network and deep network. Defaults to stacked.

  • cross_layer_num (int) : The number of cross layers. Defaults to 3.

  • expert_num (int) : The number of experts in mixed cross network. Defaults to 4.

  • low_rank (int) : The embedding size of features. Defaults to 128.

  • embedding_size (int) : The number of experts in mixed cross network. Defaults to 16.

  • mlp_hidden_size (list of int) : The hidden size of deep network. Defaults to [768, 768].

  • reg_weight (float) : The L2 regularization weight. Defaults to 2.

  • dropout_prob (float) : The dropout rate. Defaults to 0.2.

A Running Example:

Write the following code to a python file, such as run.py

from recbole.quick_start import run_recbole

run_recbole(model='DCNV2', dataset='ml-100k')

And then:

python run.py

Tuning Hyper Parameters

If you want to use HyperTuning to tune hyper parameters of this model, you can copy the following settings and name it as hyper.test.

Note that we just provide these hyper parameter ranges for reference only, and we can not guarantee that they are the optimal range of this model.

Then, with the source code of RecBole (you can download it from GitHub), you can run the run_hyper.py to tuning:

python run_hyper.py --model=[model_name] --dataset=[dataset_name] --config_files=[config_files_path] --params_file=hyper.test

For more details about Parameter Tuning, refer to Parameter Tuning.

If you want to change parameters, dataset or evaluation settings, take a look at
